- 640 x 480 uncooled microbolometer detector
- 12 µm pixel pitch
- SWaP-C optimized
- Up to 60 Hz full frame rate
- NETD of 40 mK or 35 mK
- GenICam compliant
Features
Downloads

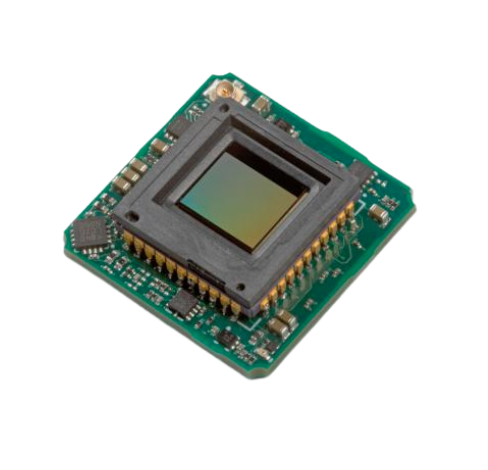

The Dione XP (Extreme Performance) 640 OEM offers integrators and machine builders the ideal solution for uncooled LWIR imaging applications.
Featuring a 640 x 480 uncooled microbolometer detector and a pixel pitch of 12 µm, the Dione XP 640 offers low latency, fast start-up, contour mode and local AGC for enhanced detection and fusion. Xenics Local Image Enhancement (XLIE) algorithm provides sharp contrast and exceptional dynamic range.
The Dione XP 640 OEM combines ultra-compact design, GenICam compliance, and SWaP optimization for seamless integration into critical systems - the ideal solution for security, surveillance and search-and-rescue applications.
| Camera Specifications | Dione XP 640 OEM |
|---|---|
| Pixel pitch | 12 µm |
| Image format | 640 x 480 pixels |
| Spectral range | 8 - 14 µm |
| Max frame rate (full frame) | 60 Hz |
| Regulatory compliance | RoHS |
| Integration type | Rolling shutter |
| Power consumption | 0.750 W (16bit DV); < 1.1 W (MIPI CSI-2); <1.32 W (UVC); < 1.3 W (USB) |
| Optical interface (optional) | M24 or M34 x0.5 |
| Detector NETD | < 40 mK or <35 mK |
| Digital output format | 16 bit DV, MIPI CSI-2, USB, UVC |
